HADP 100kVAC/140KVDC/150mA AC/DC Hipot Test System
Home > Systems > On Site Test System > AC/DC Hipot

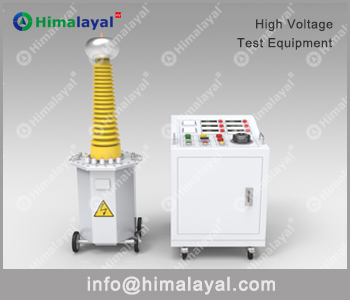

HADP 100kVAC/140KVDC/150mA AC/DC Hipot Test System (Oil type)

Lead time: 30 days

Mode: HADP 100kVAC/140KVDC/150mA AC/DC Hipot Test System
Input: AC220V ± 10%
Frequency: 50Hz/60Hz ± 1Hz
Output: 0-100kV, AC RMS
0-140kV, DC RMS
Working Duration: 100%Rated-1minute, 50%-continuous
Capacity: 15kVA
HT Source: Oil type testing transformer
Output control: Manual control
Voltage accuracy: < 1.5% (F.S)
Current Accuracy: < 1.5% (F.S)
Timing range: 0-99H
Metering: Digital display, kV meter: Digital display, kV meter: 0-145kV, mA meter: 0-150mA,
Humidity: 85% RH
Environmental temperature: -20℃~50℃
Weight Control unit: about 70kg
Dry testing transformer: about 120kg
